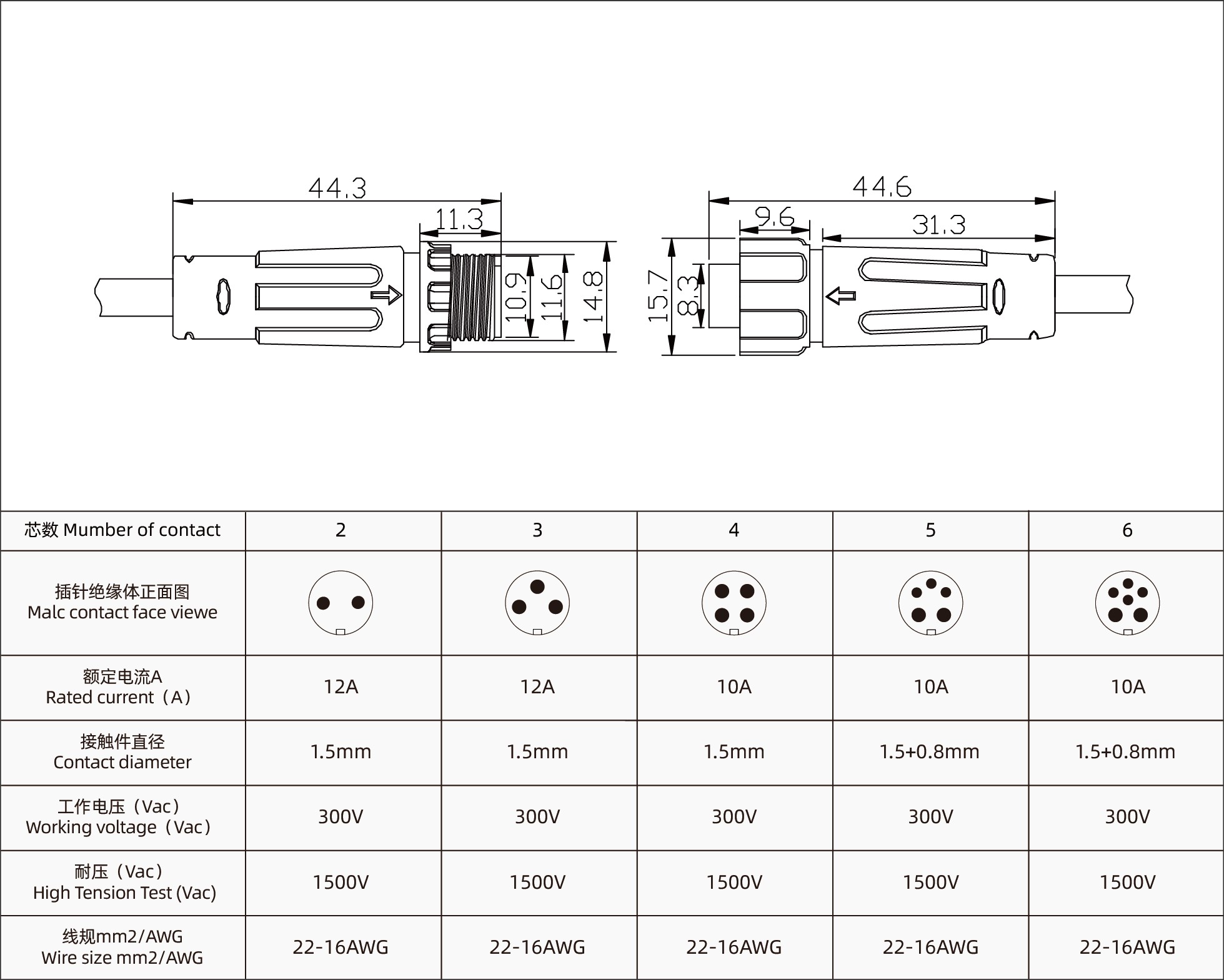

Parameter	2	3	4	5	6
Malc contact face view
ARated current（A）	12A	12A	10A	10A	10A
Contact diameter	1.5mm	1.5mm	1.5mm	1.5+0.8mm	1.5+0.8mm
Working voltage（Vac）	300V	300V	300V	300V	300V
High Tension Test(Vac)	1500V	1500V	1500V	1500V	1500V
mm2/AWGWire size mm2/AWG	22-16AWG	22-16AWG	22-16AWG	22-16AWG	22-16AWG

Waterproof Connector

Industrial-Grade Reliable Connection

JNJDZ delivers precision-engineered waterproof connectors for demanding industrial and outdoor environments.

Designed for stability. Built for extreme conditions.

Core Engineering

IP67 / IP68 Protection
Sealed for water, dust, and harsh outdoor exposure.

Precision CNC Contacts
High-accuracy machining ensures stable conductivity.

Gold-Plated Terminals
Low resistance. Strong corrosion resistance.

Resin Potting Structure
Internal sealing against vibration and moisture.

PA66 Housing (UL94-V0)
High strength, flame-retardant, temperature resistant.

CNC Machining Process

Precision CNC machining ensures accurate metal contacts and stable electrical performance.

Waterproof Testing

IP67/IP68 sealing verification under water immersion and pressure testing conditions.

Performance Testing

Electrical conductivity, pull strength, and environmental reliability validation.

Performance Standard

• Operating range: -40°C ~ +105°C

• Salt spray resistance: 24H

• Mechanical pull strength: 5KG

• Stable electrical conductivity under load

Application Fields

LED Lighting / Solar Systems / Marine Equipment /
Industrial Automation / Security Systems / Outdoor Power Systems

Quality Control

Each unit undergoes full inspection:

Waterproof • Conductivity • Mechanical Strength • Temperature Resistance

Company

JNJDZ specializes in industrial waterproof connector systems, supporting OEM / ODM customization with strict manufacturing standards and global supply capability.
